Hasegawa

Tripod,Orchard

Ladders

3legs

Engineered for Safety,
Built to Last.

 Our customers include arborists, tree surgeons, orchard owners,
topiary specialists, institutional and estate gardeners, hedging
contractors, permaculturists, landscapers, and countless gardening
enthusiasts who all appreciate the stability and practicality of the
tripod design.

wide base

stable

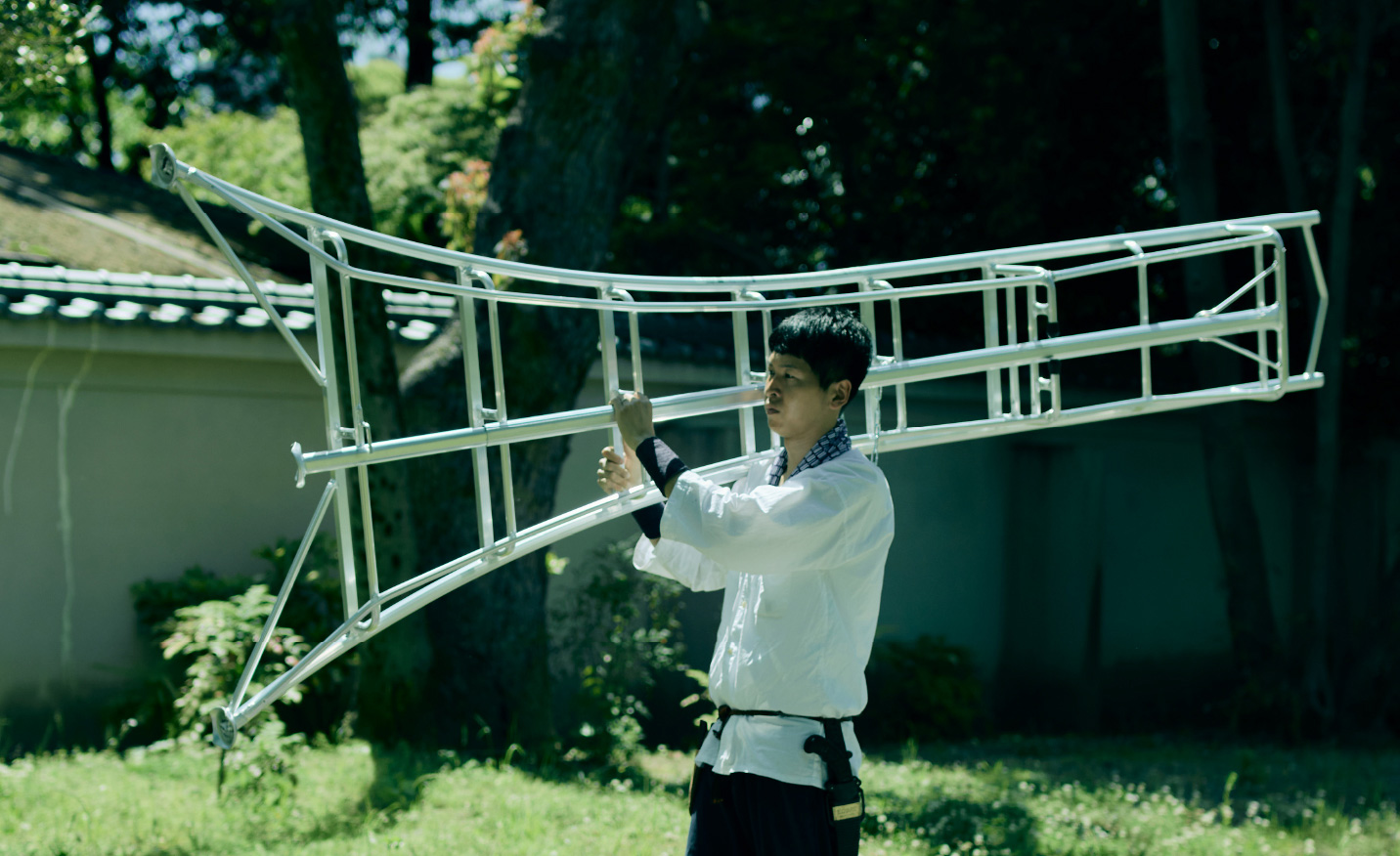

and light

5 features

100%
Welded Structure

Since it is not bolted or screwed, it is lightweight and there is no need to worry about damage due to loosening of the bolt.

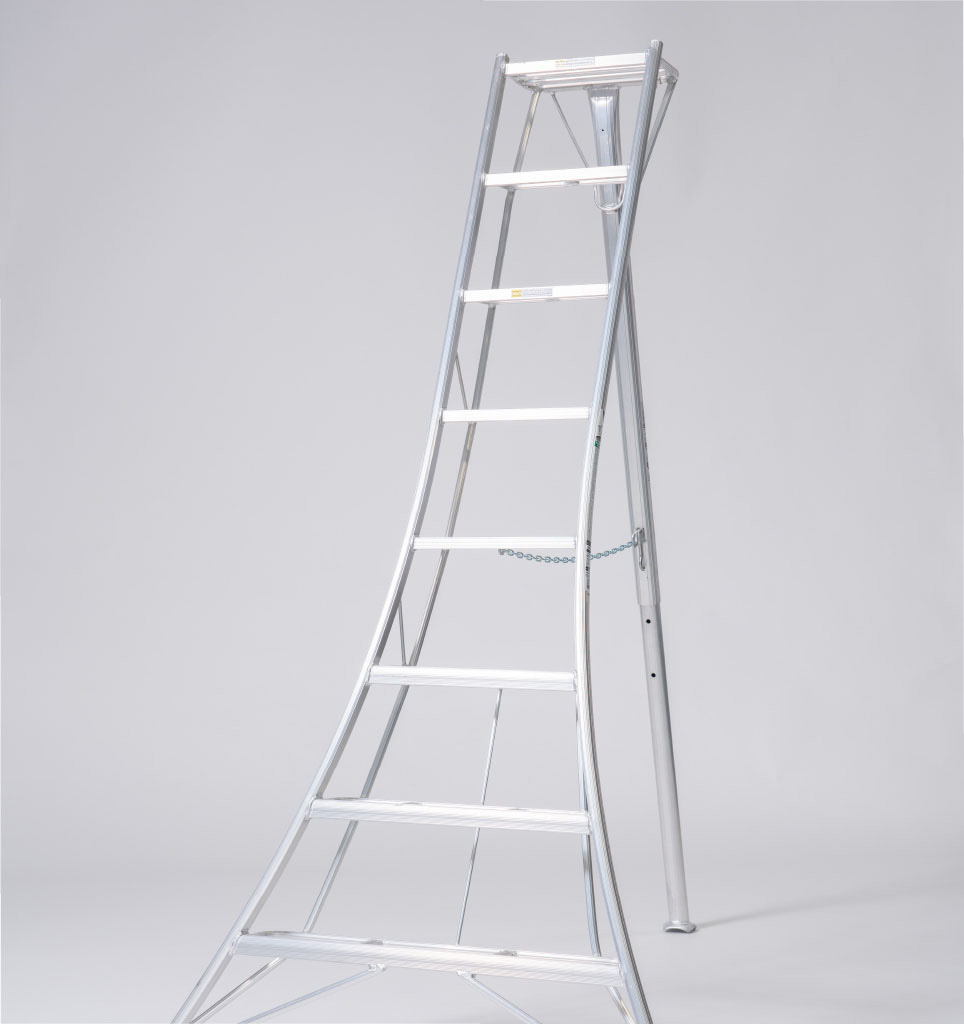

Eiffel Tower
Shape

High stability, suppresses lateral shaking due to weight shift during work and prevents rollovers

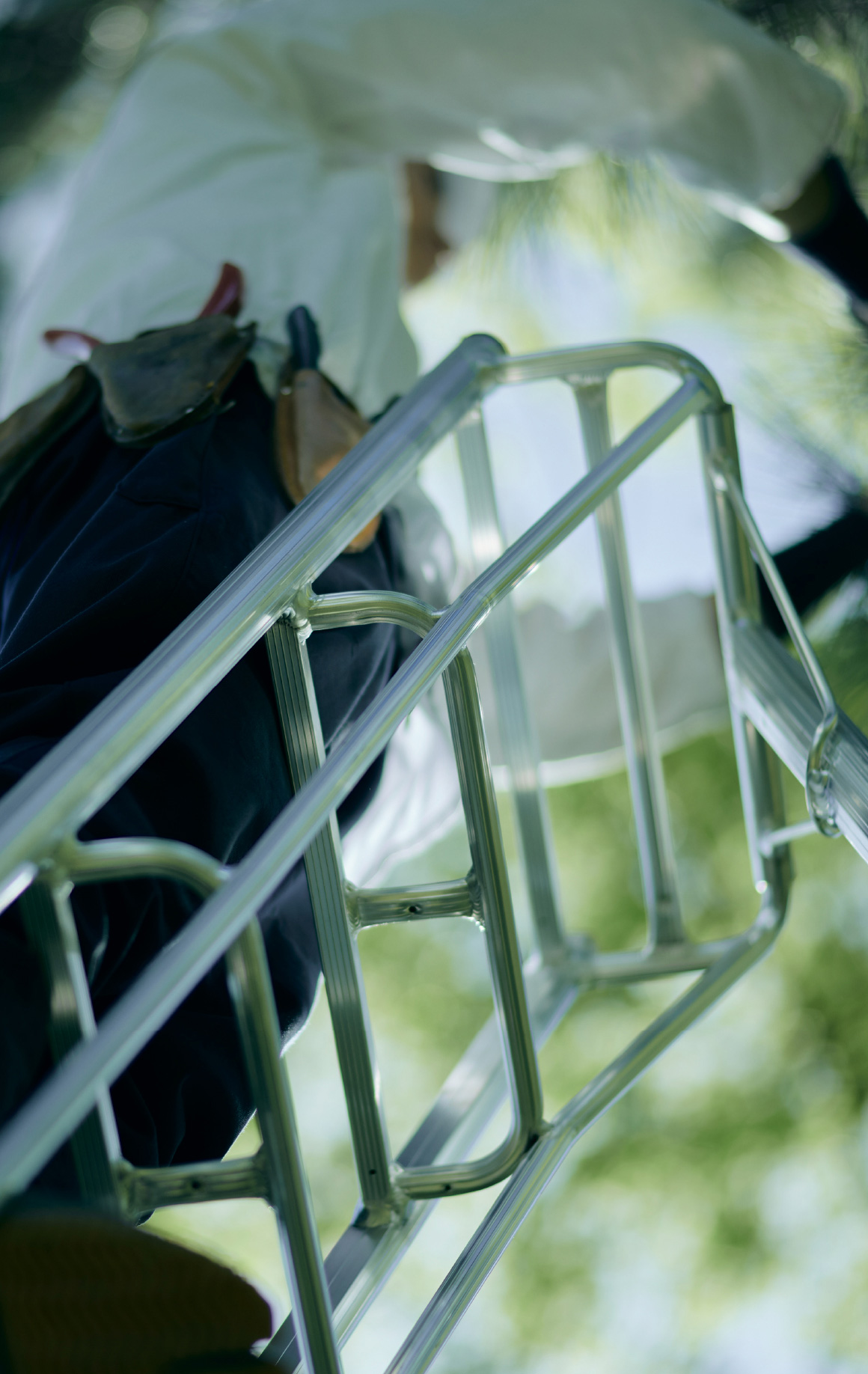

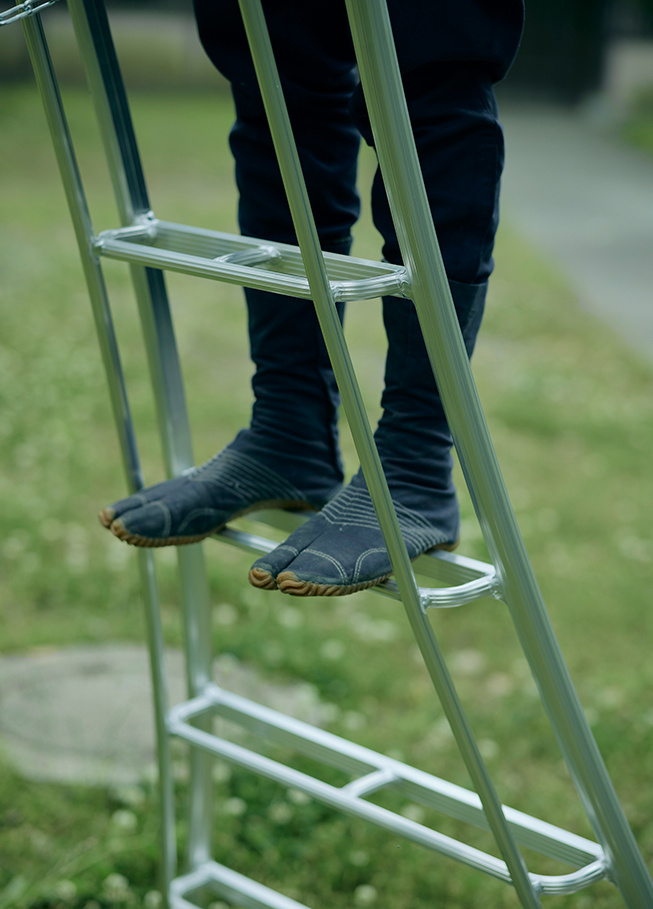

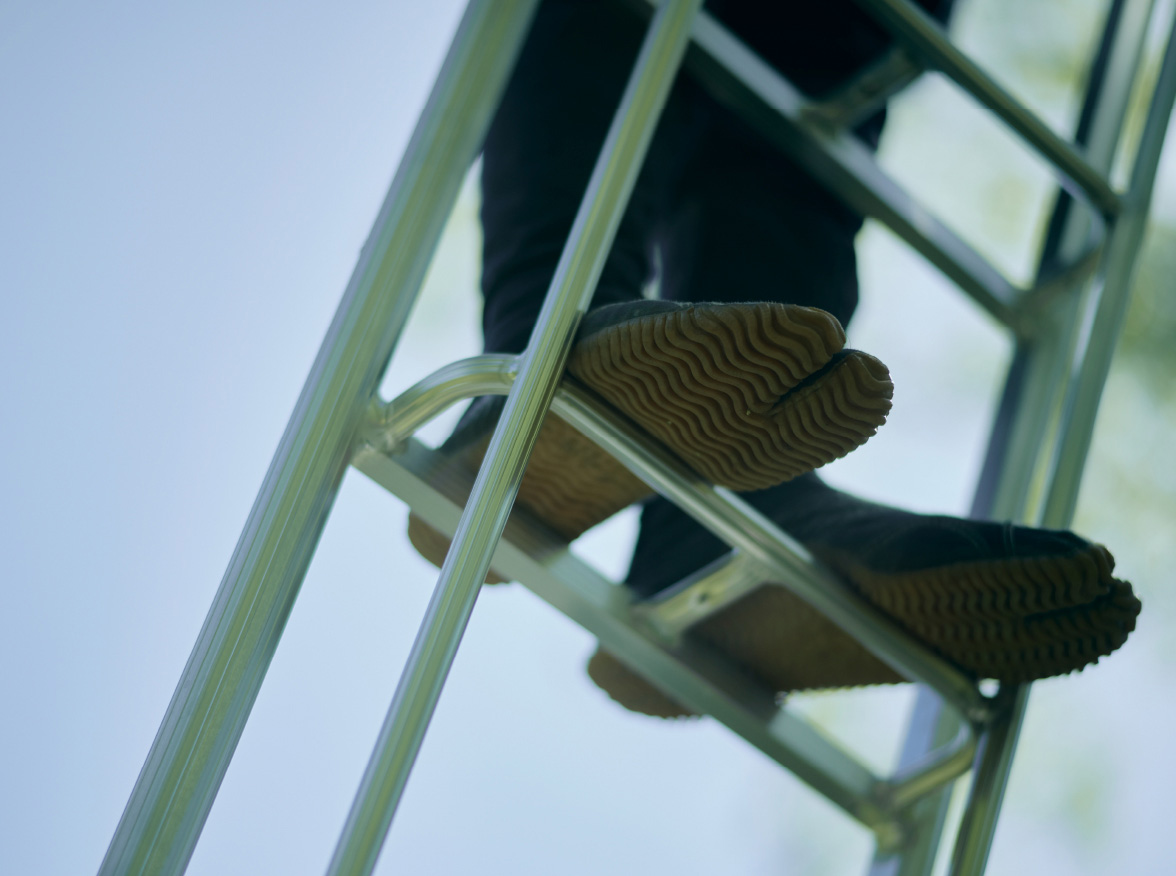

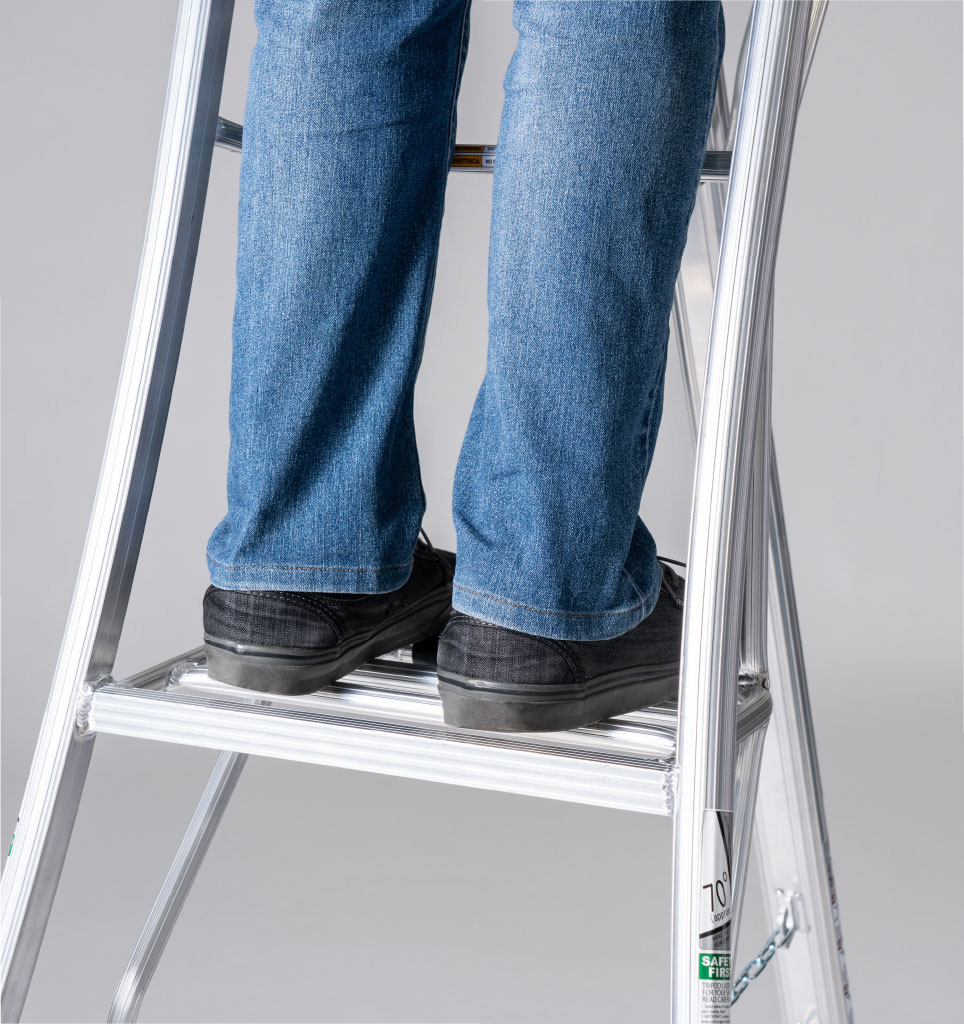

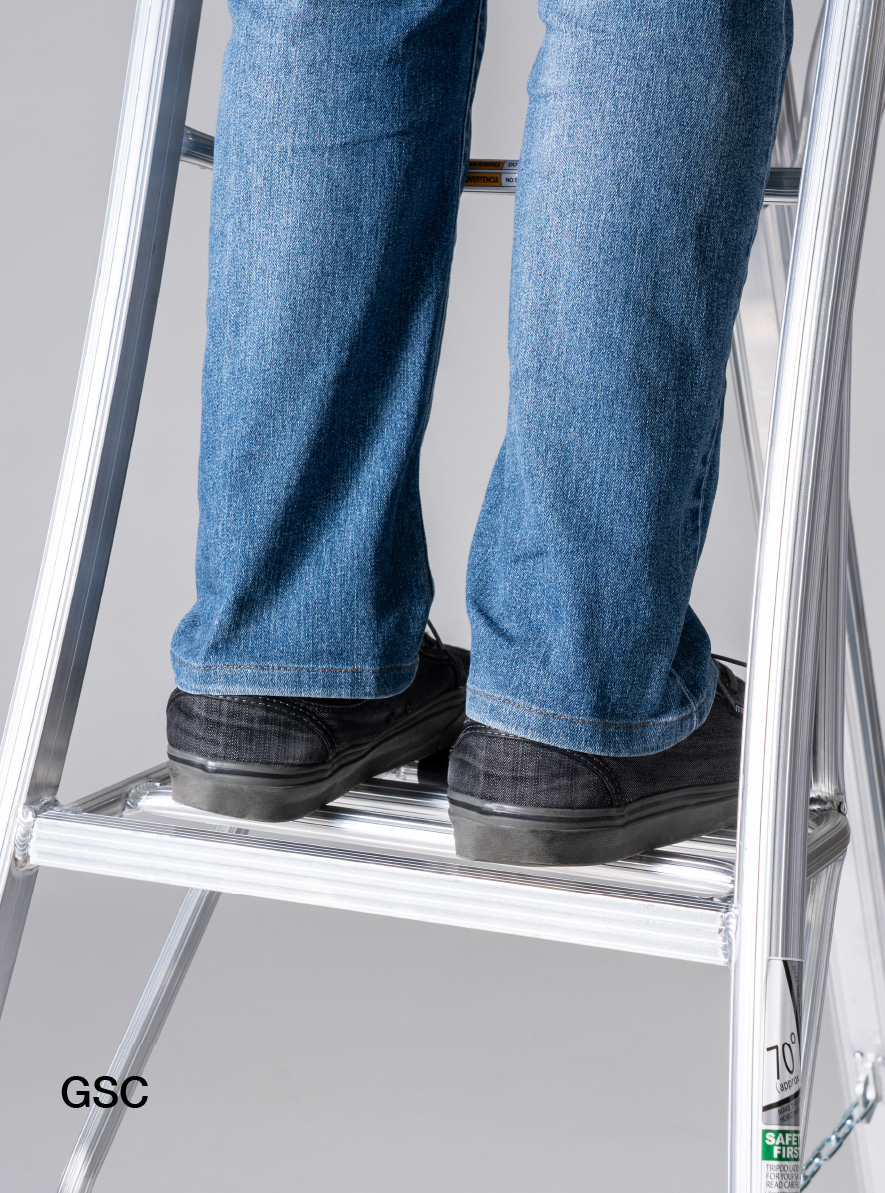

Pillar-form step

The treads are shaped like pillars to prevent dirt accumulation, thereby reducing slipping risks, while also enhancing grip.

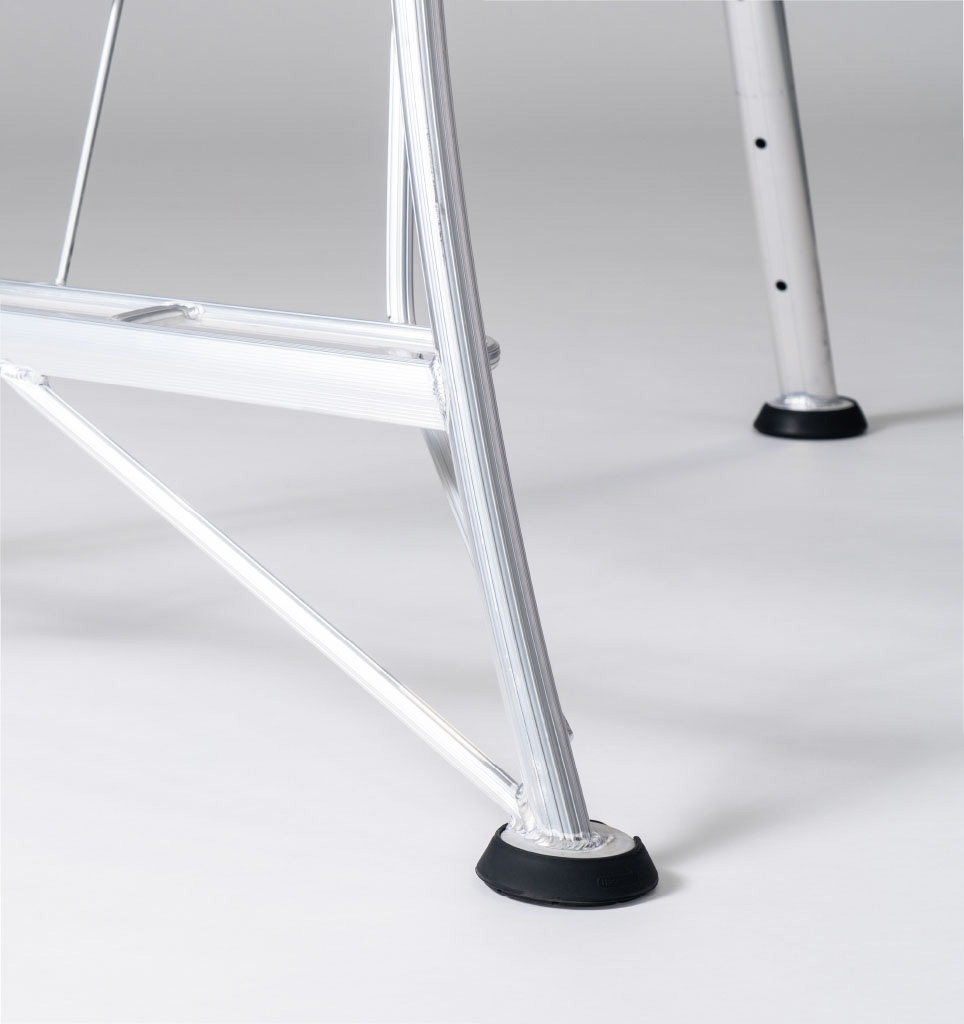

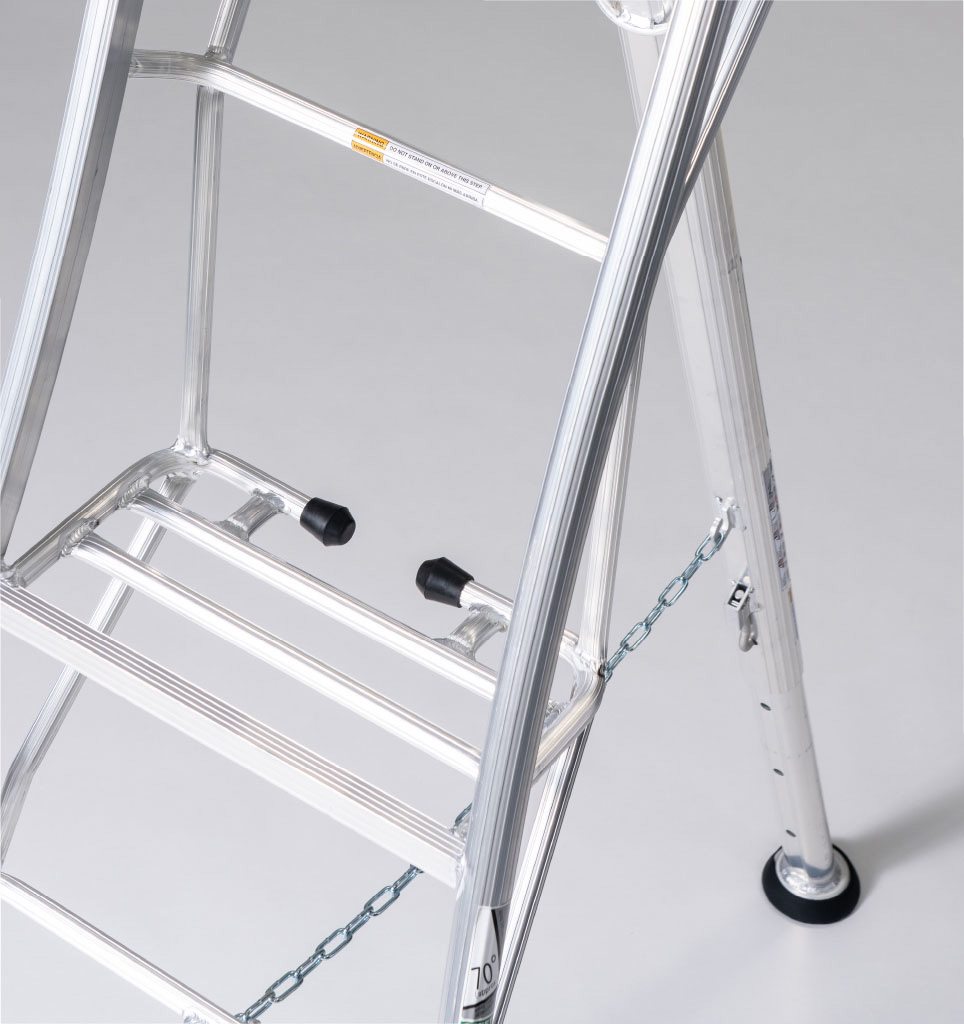

Rubber foot for
hard surface

Not only outdoor use,
Rubber safety feet enable use
on hard surfaces such as concrete.

*Rubber safety feet are included with each ladder sold in USA.

Model
with platform

Comes with an upper frame, allowing you to work in a stable position while riding on the top plate

1 5

Quality first,efficiency second,SAFETY of course

Line up

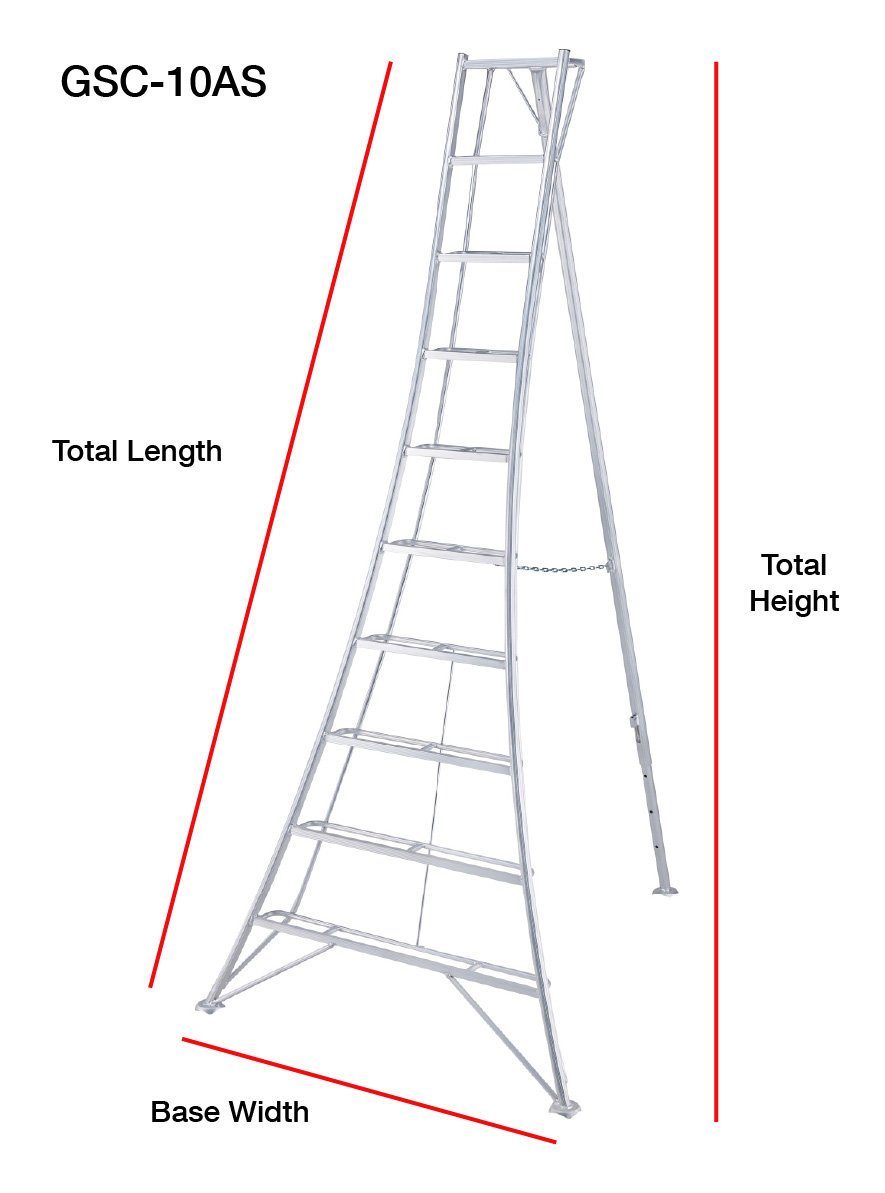

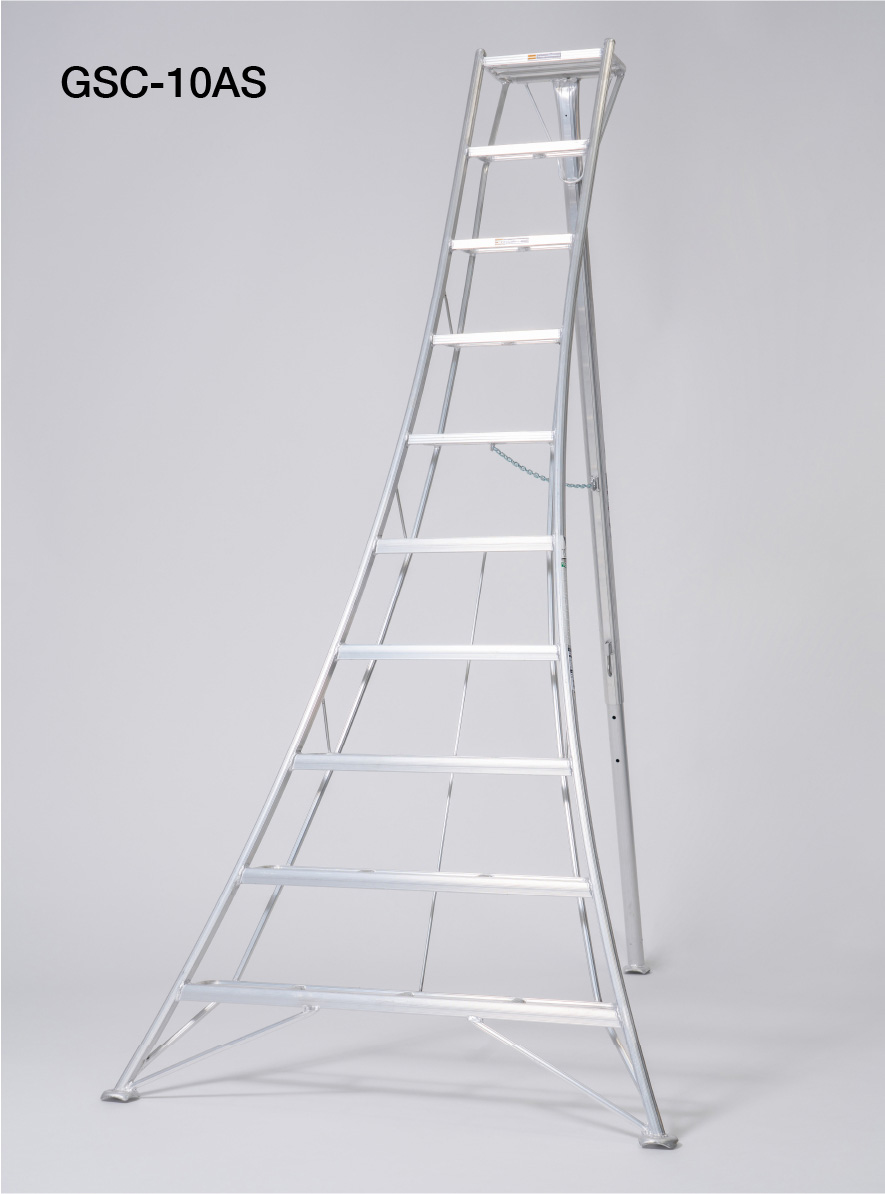

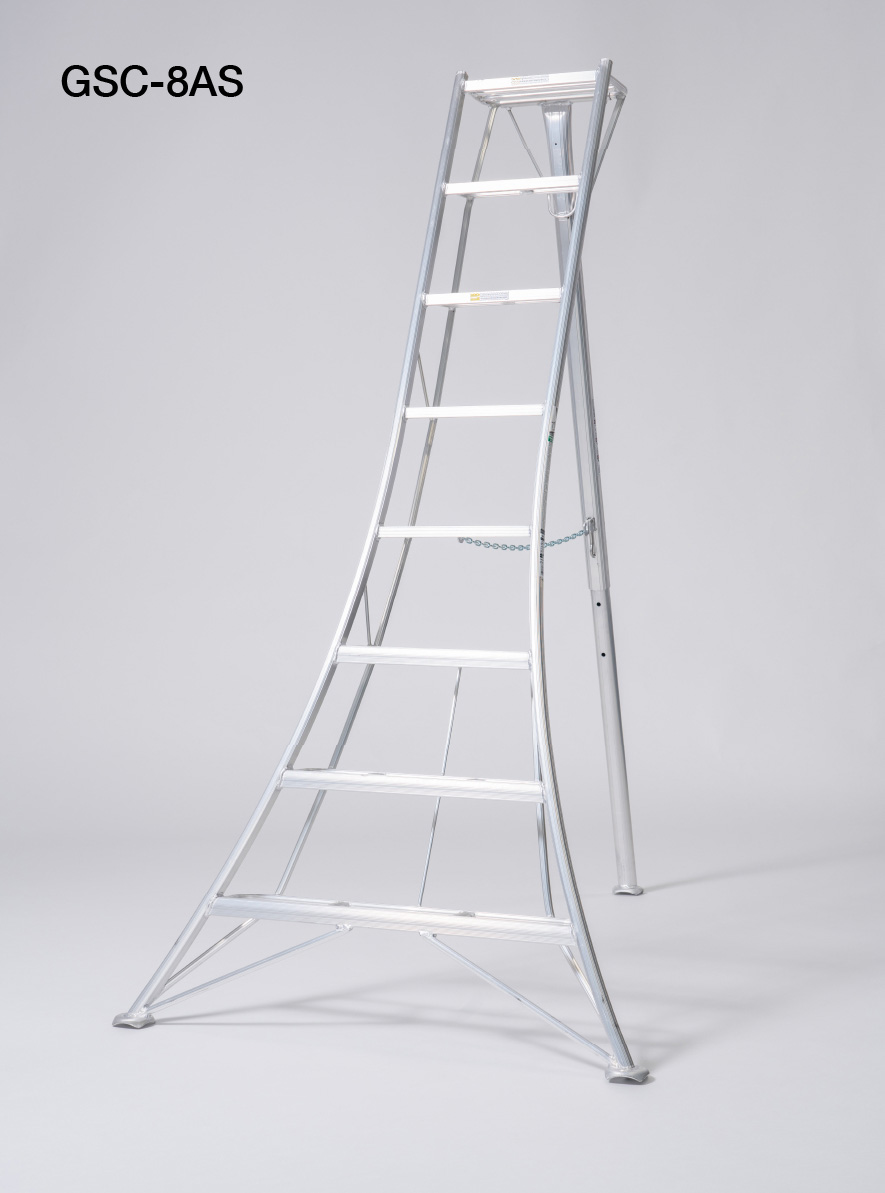

GSC

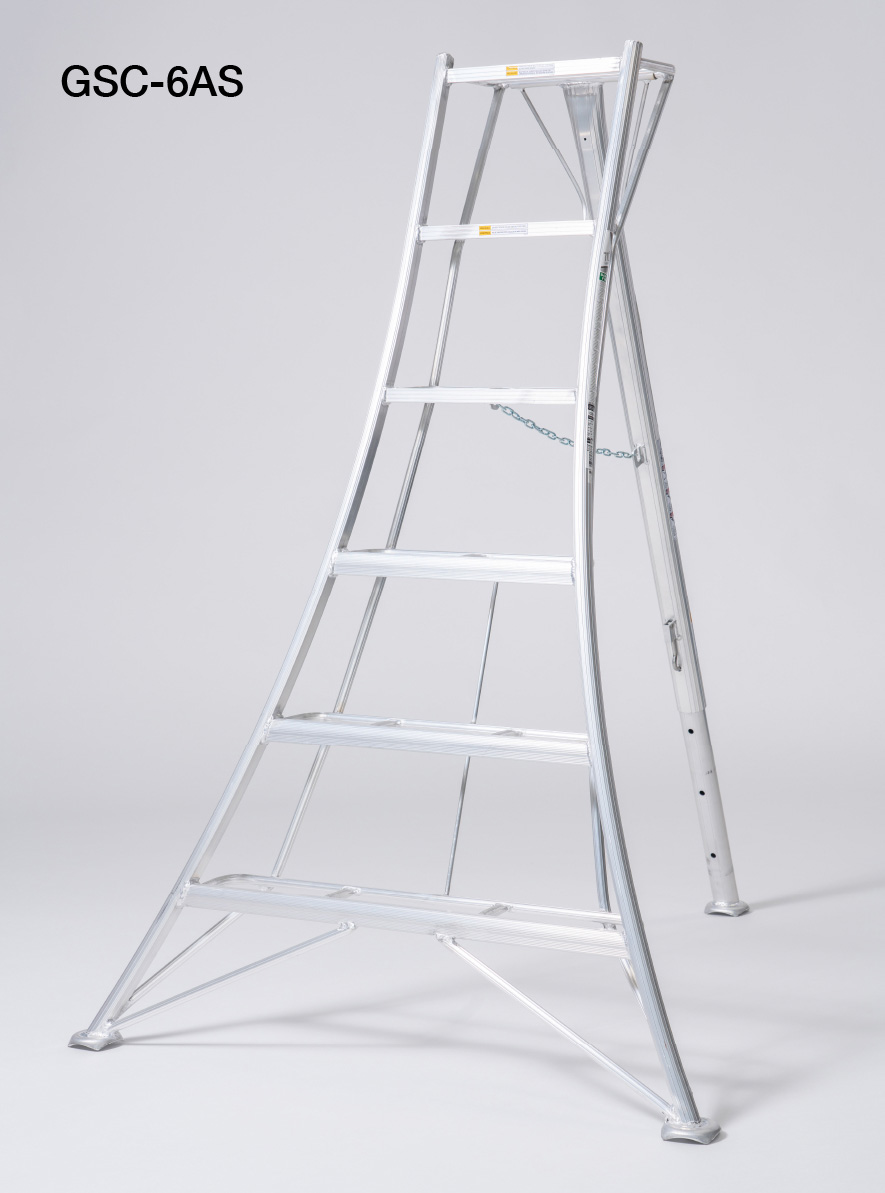

The GSC is the regular type tripod ladder.
There are 5 sizes, from 6 to 16 feet.

ANSI 1A Cerified Tripod Ladder
- 300lbs Load Capacity

ModelStep
Count		Total
Height		Total
Length		SSHBase
Width		SpredWeight
GSC-6AS 65’8”6’3’9”4’1”5’19lbs
GSC-8AS 87’6”8’4’8”4’1”6’4”24lbs
GSC-10AS 109’5”10’6’7”4’10”7’8”30lbs
GSC-12AS 1211’4”12’2”8’5”4’10”9’37lbs
GSC-16AS 1615’16’12’3”4’10”11’10”42lbs

ANSI 1A Cerified Tripod Ladder
- 135kg Rating

ModelStep
Count		Total
Height		Total
Length		SSHBase
Width		SpredWeight
GSC-6AS 61.72m1.86m1.15m1.26m1.52m7.0kg
GSC-8AS 82.30m2.47m1.43m1.26m1.93m9.5kg
GSC-10AS 102.87m3.08m2.00m1.48m2.35m12.5kg
GSC-12AS 123.45m3.70m2.58m1.48m2.76m15.0kg
GSC-16AS 164.60m4.91m3.74m1.48m3.60m20.0kg

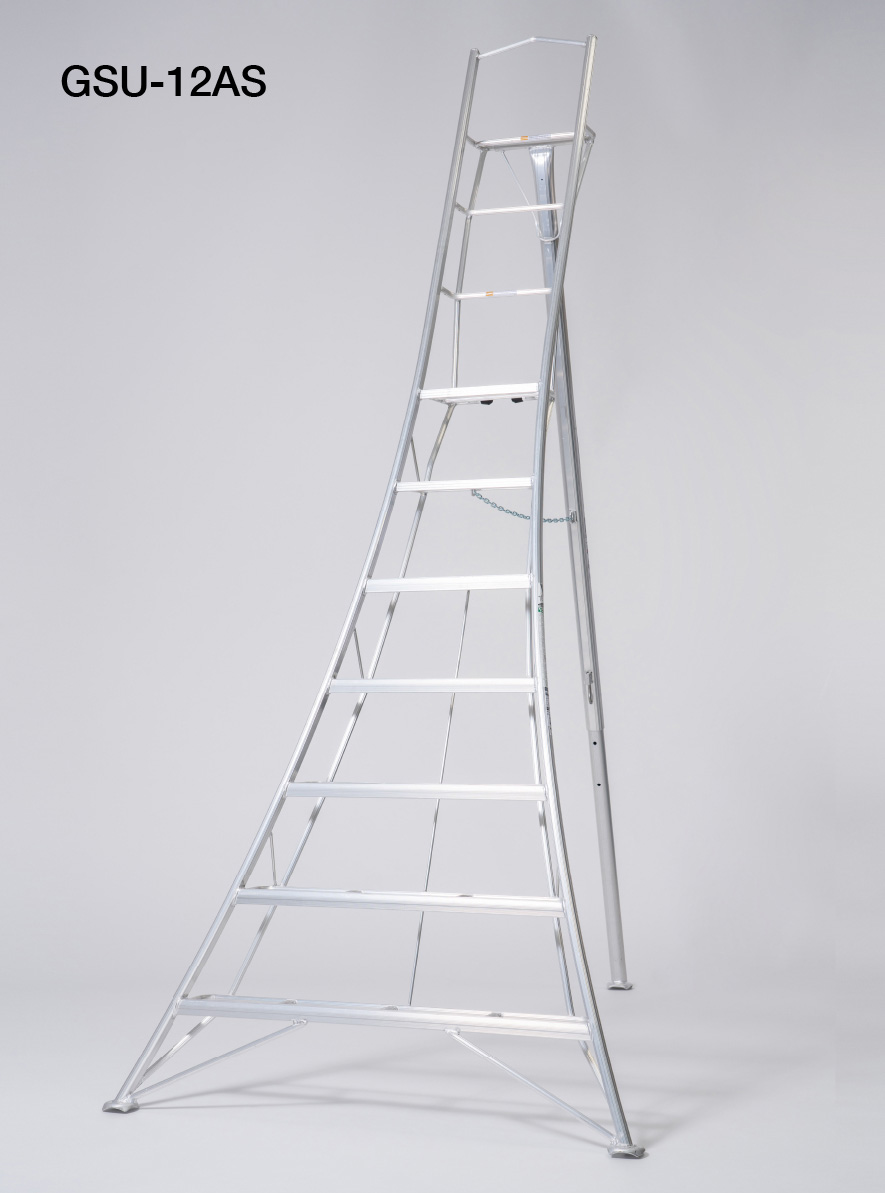

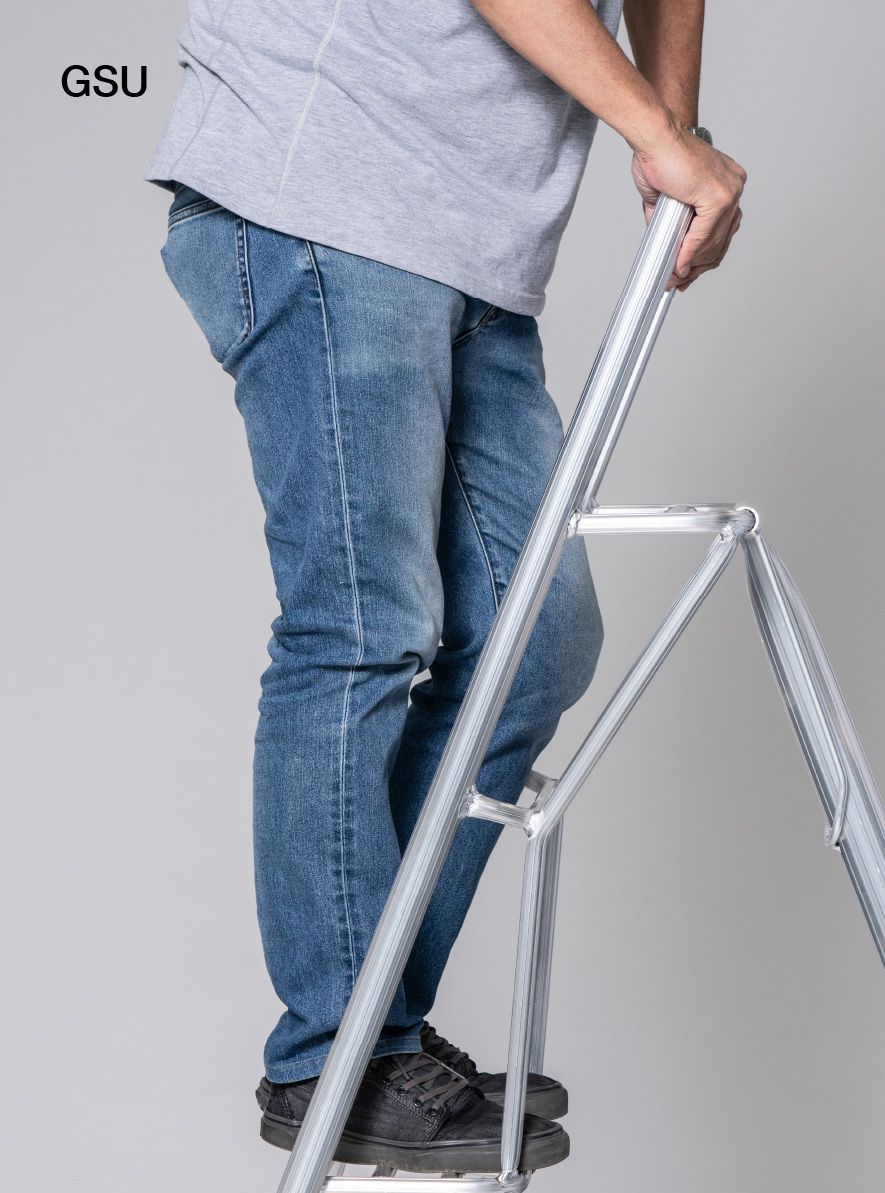

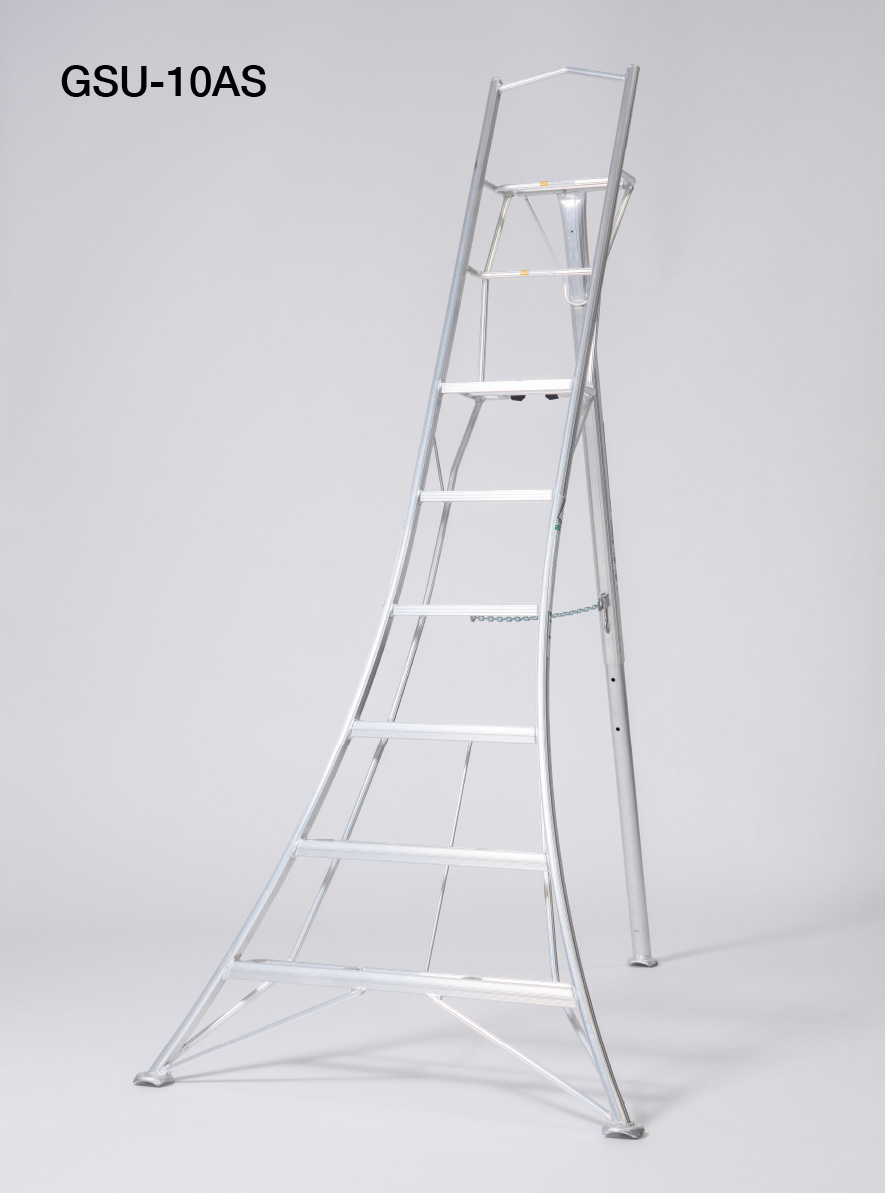

GSU

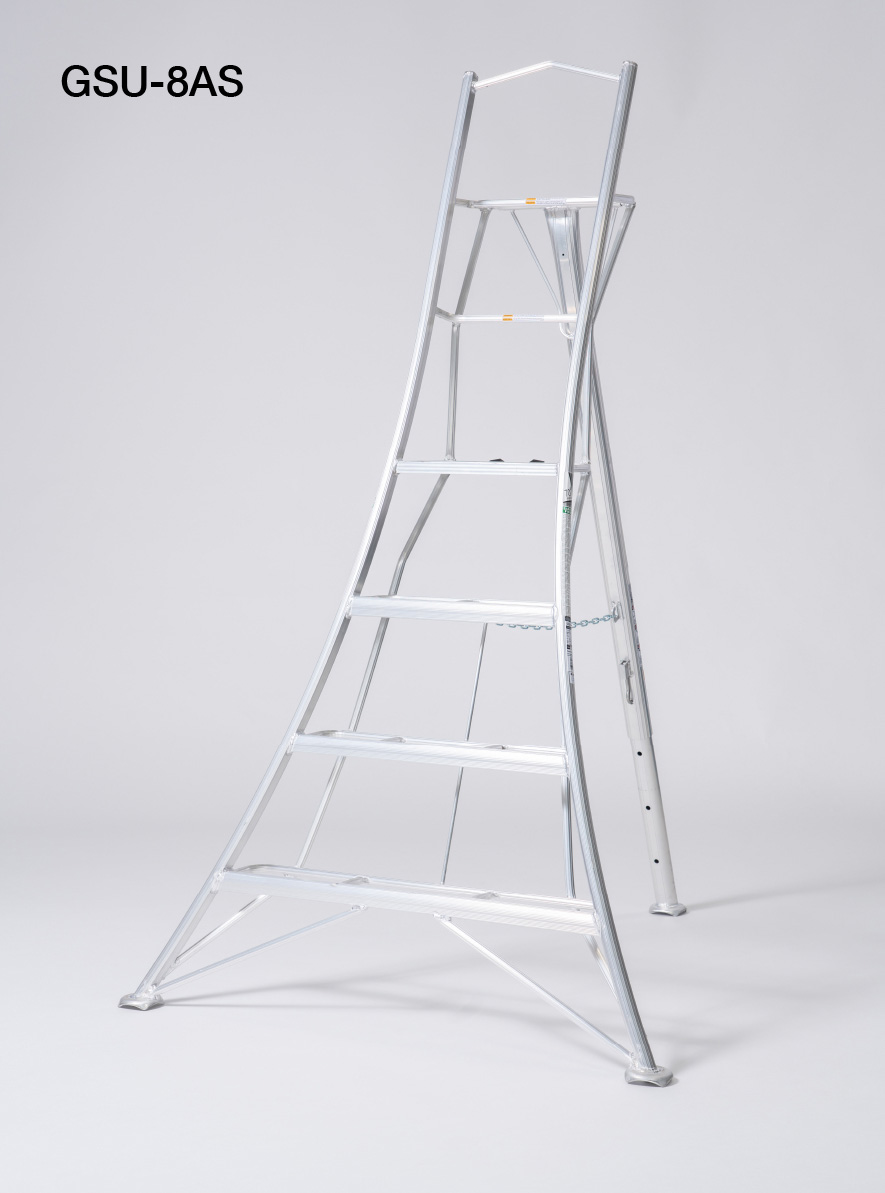

The GSU platform type is very much loved by the users.
The platform makes it extra stable and comfortable to stand on.
There are 3 sizes, from 8 to 12 feet.

ANSI 1A Cerified Tripod Ladder
- 300lbs Load Capacity

ModelStep
Count		Total
Height		Total
Length		SSHBase
Width		SpredWeight
GSU-8AS 68’5”9’5’8”4’6’3”24lbs
GSU-10AS 710’5”11’2”6’6”4’10”7’7”31lbs
GSU-12AS 912’5”13’3”8’5”4’10”9’39lbs

ANSI 1A Cerified Tripod Ladder
- 135kg Rating

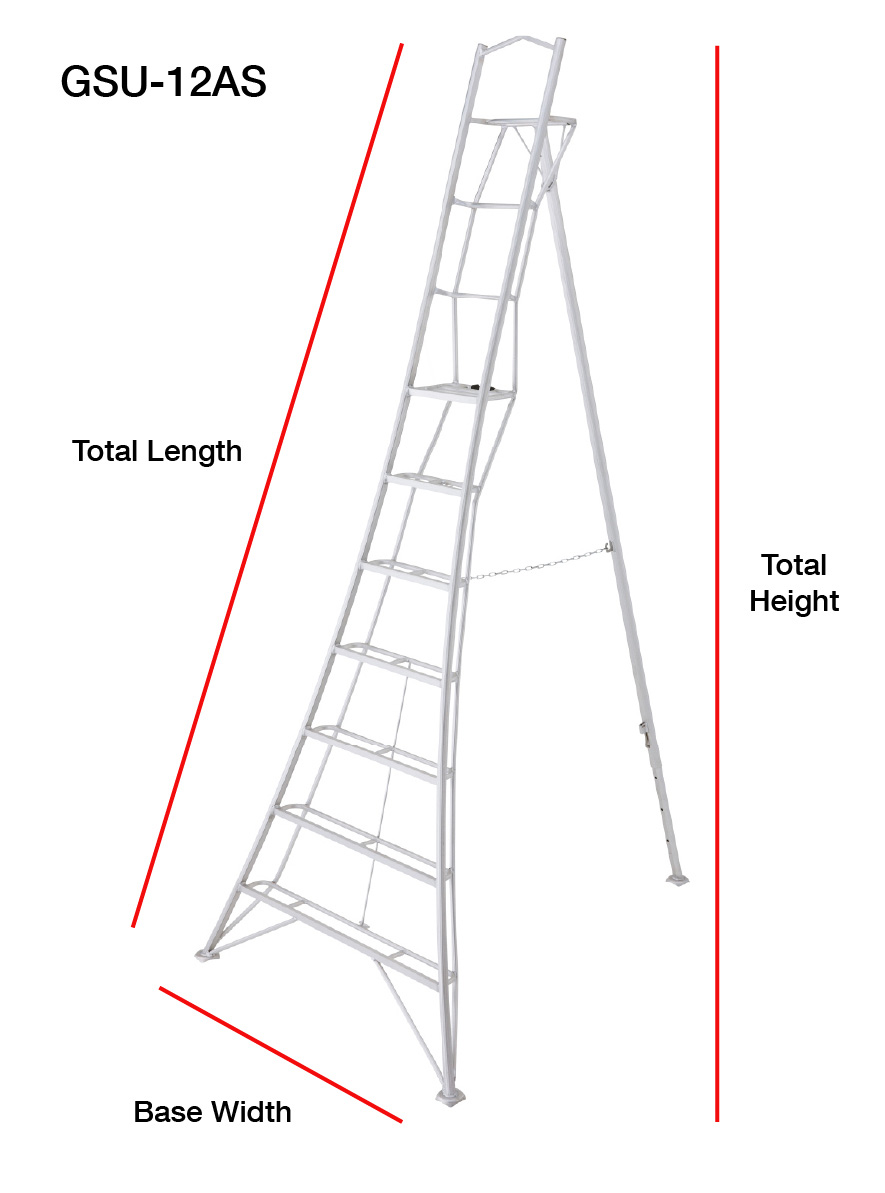

ModelStep
Count		Total
Height		Total
Length		SSHBase
Width		SpredWeight
GSU-8AS 62.61m2.78m1.72m1.26m1.91m11.0kg
GSU-10AS 73.20m3.41m2.00m1.48m2.32m14.0kg
GSU-12AS 93.78m4.04m2.58m1.48m2.74m17.5kg

Faq

What is the difference between a tripod ladder and a platform tripod ladder?
Like the name, the platform tripod ladder has a platform at the top for users to stand on. The platform increases user’s stability during use compared to normal steps.
What is the safe standing height of tripod ladders?
The top recommended standing height is: 6 Feet – Top 3rd step 8-16 Feet – Top 4th step
Can I stand on the top step?
No, please. It is unsafe and increases the risk of falls or accidents.

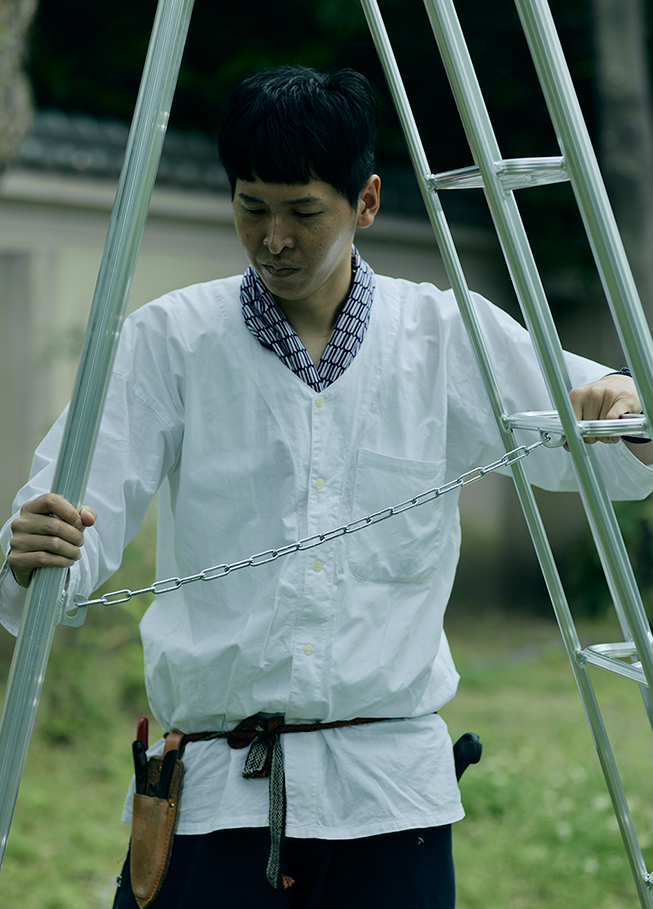

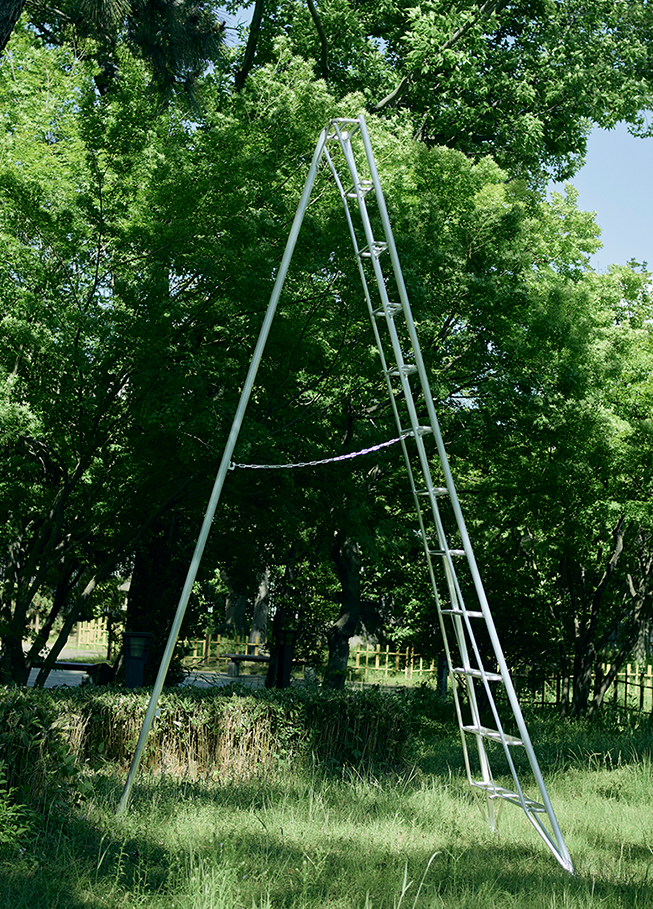

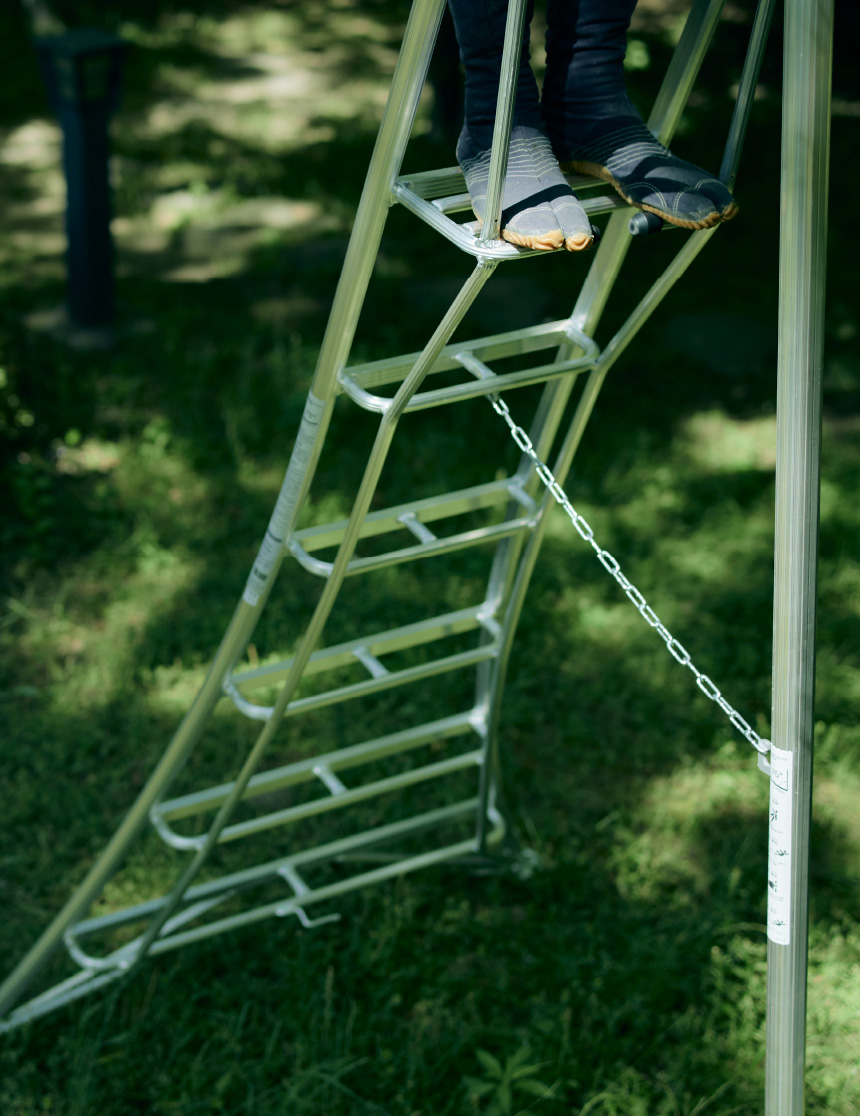

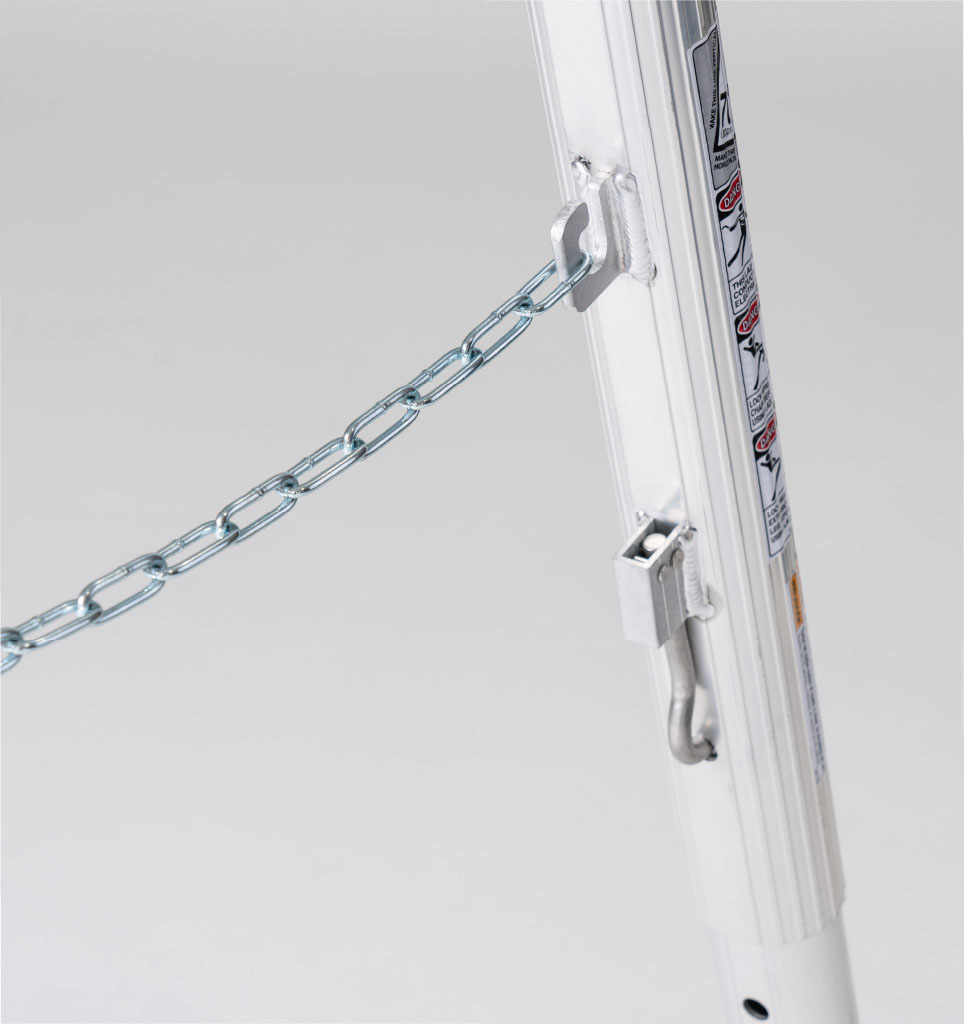

What is the purpose of the chain?
The chain must be attached during use at all times. When the chain is attached and fully stretched, the ladder will stand at a 75 degree angle, which is the steadiest working angle.
Can I replace the chain?
Please do not change or replace the chain with one of your own. If the chain is broken, please contact us.
Why can’t I purchase online?
Tripods are not available to be purchased online due to their size. In order to reduce transportation damage, and to make the shipping cost cheaper for you, please go to the ‘find a dealer’, and use our geo-location map to locate your closest dealer.
Do you sell any accessories?
Yes, we sell rubber feet, which are put on the feet of the tripod when you are working on hard surfaces such as concrete, asphalt etc.
Can I hang my tools on the ladder?
Please do not hang tools or other objects (such as baskets) on the tripod. It may shift the centre of balance and compromise safety.
There is a dent on the leg/ the leg is slightly bent. How can I fix it?
Please do not try to bend aluminum the opposite way of the direction it bends. When aluminum is bent, the point of the bent becomes very fragile, and will easily snap if opposite force is applied.
What do I need to check when I buy a new tripod ladder?
When purchasing from a store, please check the ladder fully to make sure it has no dents, damaged parts or bent parts.
I want to use on concrete/ asphal
Yes, tripod ladders are safe to use on hard surfaces when the feet are attached with our rubber feet.
Can I extend the back leg more by adding extra holes?
No, please do not try to customise the tripod ladder.
Can I use the tripod ladder on every angled surface?
The surface is safe to place the tripod ladder when: the chain is fully extended, the legs are at 75 degrees after adjusting the back leg, and rubber feet is used when the tripod is placed on hard surfaces.
Is this ladder electro conductive?
Yes, contact with open wires may lead to serious injury or death. Please check the environment carefully before use. Please also refrain from using tripod ladders in storms or when lightning is visible.
Why are the steps not one solid plane?
The steps are designed with consideration to safety, and this design allows the ladder to be lighter. There are also ridges on the surface of each step to provide a better grip and firmer stand.
Can I use this ladder during winter or when it’s cold?
Yes, the tripod ladder is safe to use when it is cold. However, the ladder must be stored properly, where it will not be in contact with rain or other liquid. If water gets into the ladder, it may cause the ladder to erupt from the inside when it freezes, just like water pipes.
I live in a hot area, what do I need to be careful of?
Aluminum is heat conductive, therefore if the temperature goes above 100 Fahrenheit, be careful to not hurt your hands.
I lost a plastic cap, what should I do?
For all enquiries regarding lost/ shortage of parts, please contact us.
